When your LEGO robot carries new attachments like arms, scoops, or sensors, you might notice that turns become sluggish, uneven, or inaccurate. This happens because of changes in weight distribution and friction—not motor weakness or programming errors.
Here’s why it happens and how to fix it mechanically for better turning precision.
Understanding the Problem
LEGO Spike or EV3 robots usually have two driven wheels and one or more free supports (like rims or caster wheels). Adding attachments to the front shifts the robot’s center of gravity forward, causing:
- Extra load and friction on front supports
- Reduced traction on drive wheels
- Uneven turning, especially when rotating in place
This unbalances the robot and affects turning.
Key Design Goal: Balance and Controlled Friction
To improve turning accuracy:
- Aim for 85–90% of the weight on the drive wheels
- Front supports should barely touch the ground for stability
- Keep the center of gravity low and centered

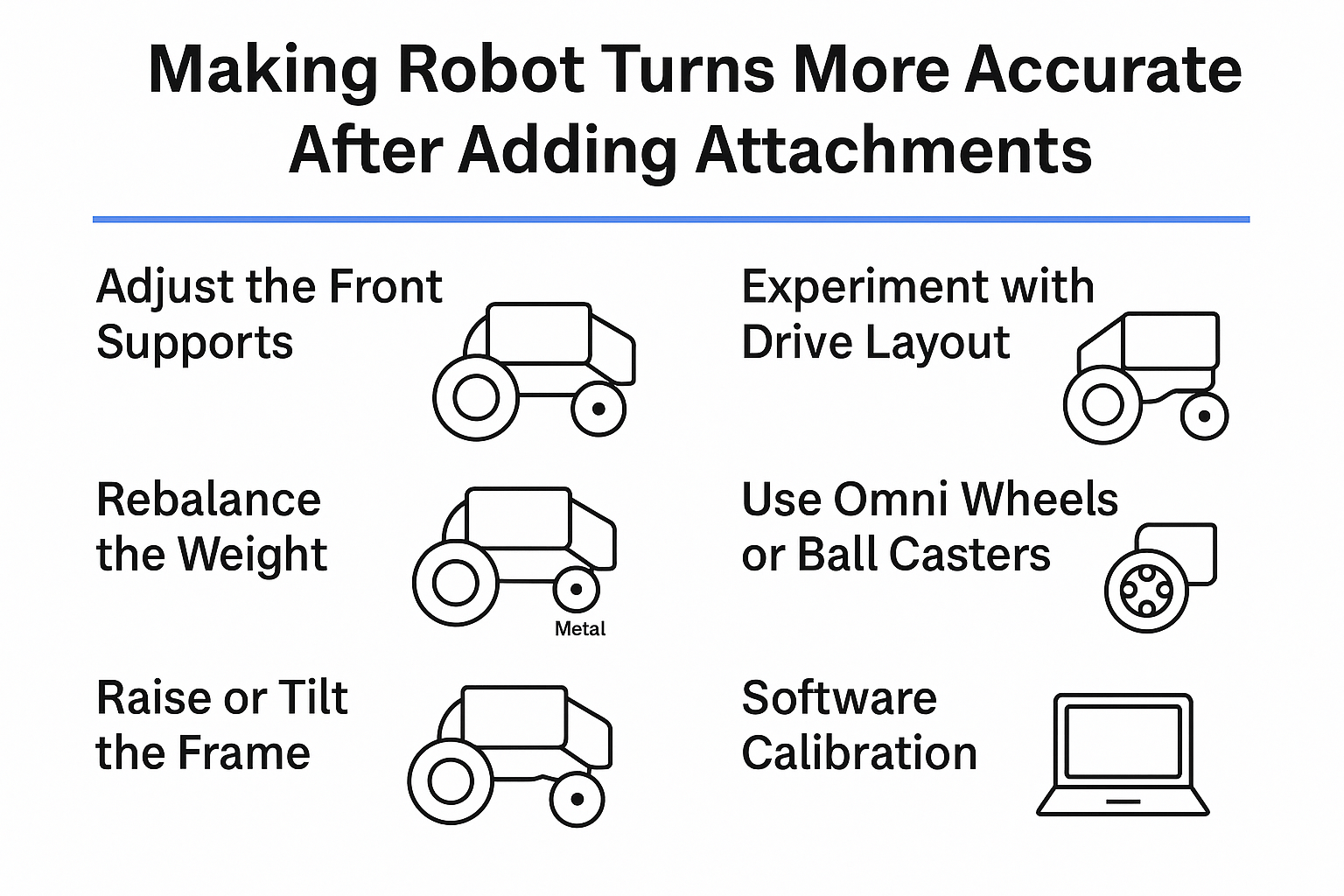

Practical Solutions
1. Adjust the Front Supports
- Use smaller, smooth, bare plastic rims (not rubber)
- Raise front supports slightly (about one LEGO plate) so they lightly touch the floor
- Round or sand rims for smoother sideways sliding
2. Rebalance the Weight
- Add a small counterweight at the back, like the metal EV3 caster wheel (35–40g)
- Mount it low and centered between the drive motors, slightly raised off the mat
- This boosts traction without adding drag
3. Raise or Tilt the Frame
- Add one LEGO plate under motor mounts to tilt the robot forward
- Use half-beam or plate spacers under front supports to reduce friction and keep weight on drive wheels
4. Experiment with Drive Layout
| Drive Type | Description | Advantages | Drawbacks |
|---|---|---|---|
| Rear-Wheel Drive | Drive wheels at back, supports front | Stable and easy to balance | Harder turning if front-heavy |
| Front-Wheel Drive | Drive wheels front, supports rear | Better turning with front tools | Less stable reversing |
| Central Drive (Balanced) | Drive wheels near center of gravity | Very smooth turning | Requires precise build |
Heavy front tools often benefit from front-wheel drive, while rear-wheel drive suits two-direction symmetry.
5. Use Omni Wheels or Ball Casters
- Replace rigid rims with omni wheels or ball casters for minimal sideways friction
- Even a homemade ball caster (marble in LEGO frame) works well
6. Software Calibration
- Recalibrate the gyro sensor after adding attachments
- Increase turn power slightly to overcome extra inertia
- Retune PID or angle control if used
Recommended Setup for Stable Turning
- Use rear-wheel drive for consistent forward/reverse behavior
- Add metal EV3 caster as a raised counterweight at the back center
- Keep front rims smooth, small, and lightly touching the floor
- Ensure the robot’s balance allows slight front lift when pressed at the back
This setup maximizes traction, reduces friction, and improves gyro turn accuracy.
Summary
| Issue | Cause | Solution |
|---|---|---|
| Sluggish turns | Too much front weight | Add rear counterweight |
| Inaccurate gyro turns | Weight imbalance | Recalibrate & rebalance |
| Skidding in reverse | Front-wheel drive on smooth mat | Use rear-wheel drive |
| Dragging rims | Supports too low or rubbery | Raise or smooth rims |
Conclusion
Accurate turning depends mostly on balance and friction management, not just programming. Adjusting support height, drive layout, and weight placement lets your robot turn smoothly and reliably—even after adding heavy attachments. Often, small mechanical tweaks like raising a rim or repositioning a caster make the biggest difference in competition performance!
